SPECIFICATIONS
Frequency Response: 20Hz-22kHz
Dynamic Response: 107dB
Harmonic Distortion:
0.003% @ 1kHz
Noise: -95dB
Programs: 16
DSP:
24 bit, 6MIPS, True Stereo
AD/DA Converters: 24 bit
Sampling Frequency:
48kHz

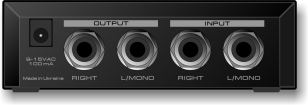

Power: 9VAC, 100mA

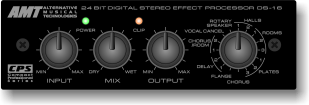

Miniature effect processor of the Compact Professional Series. The device includes 24-byte True Stereo DSP with 16 the most popular effects, which allow to use DS16 in any sphere of sound work: from home rehearsals to stages, in theatres and studios. All preset effects in the program memory are optimally selected for work with vocal and most of acoustic and electronic musical instruments. DS16 is equipped with external AC power supply; wide sensitivity range allows using it as a guitar effects processor “In Line”, situated at a considerable distance from a mixing console or an amplifier. The set of the processor's programs, besides the main effects HALL, ROOM and FLANGER includes additional combined effects: PLATE, CHORUS/ROOM and DELAY. In some cases the VOCAL CANCEL effect can be of great use, which totally eliminates main vocal out of the most stereo phonograms while leaving all the back vocals of the original. We hope that DS16 will become an essential companion of your musical works and along with other Compact Professional Series devices will make up a set of inexpensive professional high quality devices, which are necessary for each musician.
